Brand: XINPUGUANG
Features:
- ✈[Excellent performance] Solar panel Using high-quality monocrystalline silicon cells, high-efficiency monocrystalline silicon solar cells provide good performance even in low light conditions
- ✈[Highly durable] The solar panel can withstand high wind-pressure, snow loads and extreme temperatures.

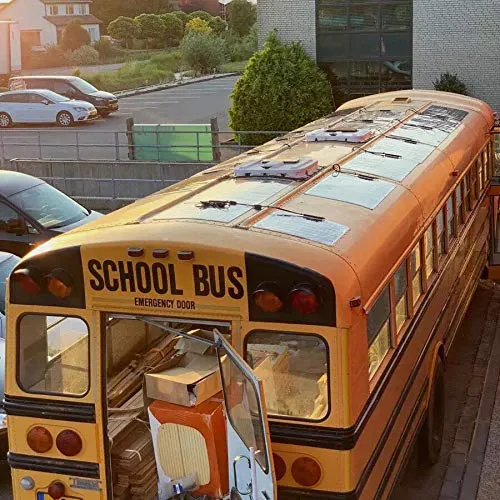

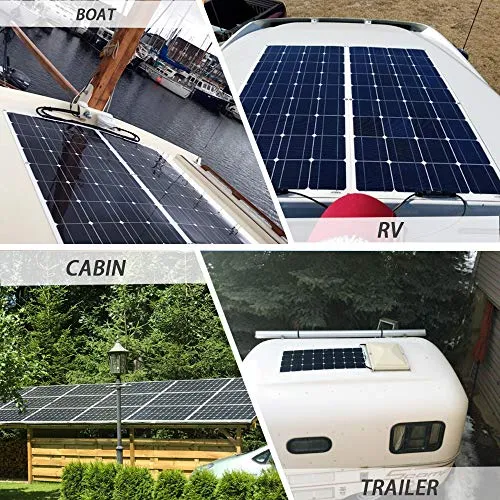

- ✈[Flexible] This flexible solar panel is a good choice for curved surfaces of RV, boat,sailboat, yacht,truck, car, coach, cabin, camper , tent , trailer, golf cart or any other irregular surface.

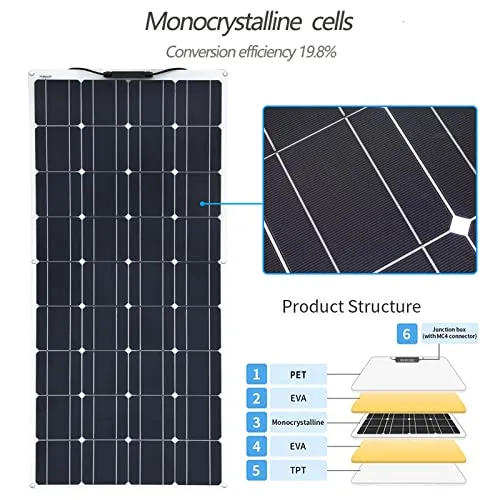

- ✈[Reliable] Advanced encapsulation material with multi-layered sheet laminations to enhance cell performance and provide a long service life.
- ✈[Functional] Solar panels can convert light energy into electricity, which can effectively deal with the difficult problems caused by power shortage and power outage.
model number: 200w-125
Details:
Technical Specifications
【Solar Cell】MONO
【Maximum power】100w
【Maximum power voltage】18V
【Maximum power current】5.55A
【Open circuit voltage】22v
【Short circuit current】5.95A
【Number of cells】36pcs
【Size of module】1175X540X3mm
【Temperature Range】-20- 60 ℃
【Tolerance Wattage】 /-5%
【Weight per piece】 2.2kg

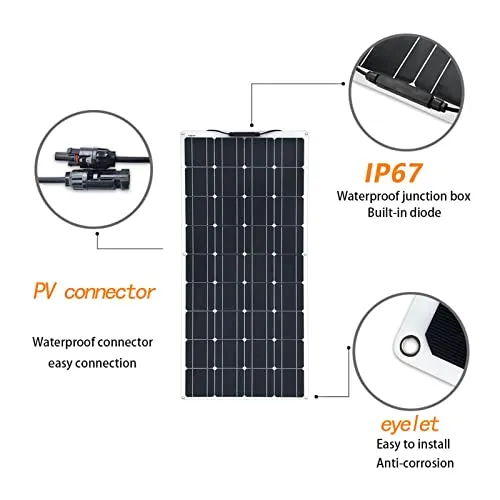

【Junction Box Type】IP65
【Length of Cables】 90cm
【Cell Efficiency】 > 19.5%
【Module Efficiency】 > 19%
【Output tolerance】 /-5%
【Standard Test Conditions】AM1.5 100mw/cm2 25 ℃
【Temperature coefficients of Isc (%)】0.065 /-0.015%/ ℃
【Temperature coefficients of Voc (%)】-(2.23 /-0.1) / ℃
【Temperature coefficients of Pm (%)】-(0.5 /-0.05)/ ℃
【Temperature coefficients of Im (%)】 0.1/ ℃
【Temperature coefficients of Vm (%)】-0.38/ ℃

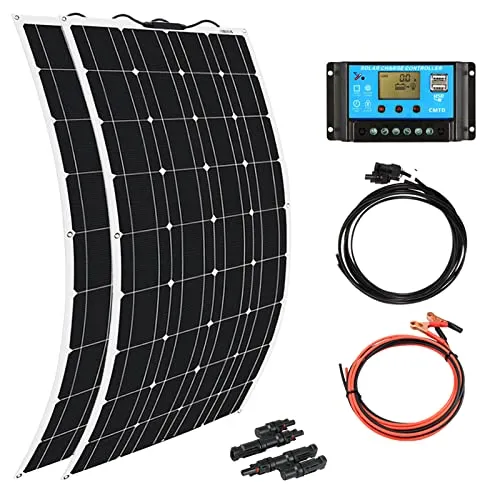

Package Include:
(1) 2 pcs 100W flexible solar panel
(2) 1 piece 12V/24V 20A PWM solar charge controller
(3) 1 set solar extention cable with female and male connectors (3m 2.5mm2)
(4) 1 set solar extention cable with alligator clips (3m 2.5mm2)
(5) 1 set PV Y branch connectors (1 male to 2 female and 1 female to 2 male)
EAN: 0743811396930
Package Dimensions: 50.0 x 22.0 x 1.0 inches
